I. Product Overview
Geomembrane welding rod, also known as HDPE plastic welding strip, special welding rod for anti-seepage membrane, is an exclusive hot-melt welding auxiliary material for geomembrane anti-seepage engineering. It is mainly used in conjunction with HDPE, LDPE, LLDPE geomembranes, relying on hot air welders and extrusion welders to complete hot-melt welding operations. It is the core consumable for geomembrane coil splicing, corner repair, damage patching, and special-shaped node sealing.
This product is extruded from virgin polyethylene resin of the same origin as geomembrane, with zero recycled waste added. The melt index is highly matched with the geomembrane base material. After welding, the weld seam and the base material are integrated, completely solving the problems of leakage, cracking, and delamination at geomembrane lap joints, ensuring the overall tightness and structural integrity of anti-seepage engineering. It is an indispensable supporting material for landfills, chemical anti-seepage, aquaculture, and water conservancy projects.
II. Core Material and General Specifications
1. Main Material
The mainstream is divided into two major categories: HDPE high-density polyethylene welding rod and LLDPE linear low-density polyethylene welding rod. Added with UV resistance additives, antioxidants, acid and alkali resistant modified fillers. Produced from pure virgin particle raw materials, no impurities, no secondary recycled materials. Hot-melt fluidity is uniform, welding without pores, no brittle fracture.
2. General Size Specifications
-
Conventional diameter: Φ4mm;
-

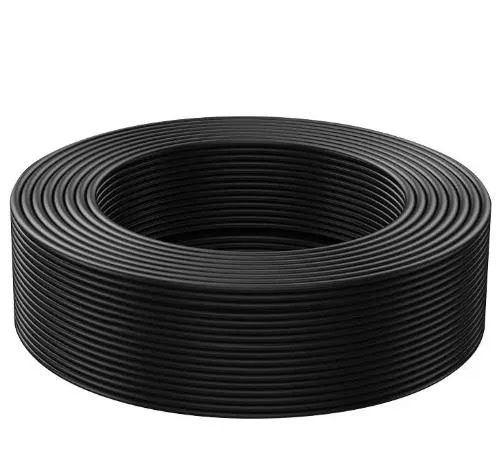

Product form: two types: coiled roll material and straight strip material. Coiled is suitable for automatic welders, straight strip is suitable for hand-held small welders;
-
Standard color: classic black (UV resistant), customizable white and transparent;
-
Compatible base material: 1.0mm-3.0mm full thickness HDPE geomembrane, anti-seepage membrane, waterproof board, plastic anti-seepage sheet.
III. Core Product Advantages
1. Same-origin material welding, weld seam strength at full capacity
The welding rod resin formula and melt index match the geomembrane base material 1:1. The hot-melt fusion degree is extremely high. After welding is completed, the peel strength and tensile strength of the weld seam ≥ the strength of the geomembrane base material itself. There will be no interface delamination, fracture, or shedding, eliminating the hidden danger of preferential damage at the weld seam, meeting the national standard anti-seepage testing standards for engineering.
2. Weather and corrosion resistant, suitable for harsh outdoor working conditions
Built-in anti-aging and UV-resistant formula, resistant to high and low temperature range -20°C~120°C. No cracking in severe cold winter, no softening and flowing in summer high temperature. At the same time resistant to strong acid, strong alkali, salt, sewage, biogas, chemical waste liquid corrosion, resistant to soil microbial erosion. Under open-air buried soil and sewage immersion working conditions, the service life is synchronized with the geomembrane, reaching more than 50 years.
3. Excellent welding performance, construction efficient and worry-free

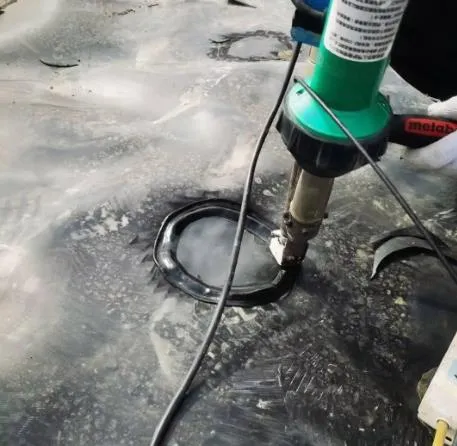

Stable melting point, uniform hot-melt flow rate, welding no caking, no foaming, no scorched edges, formed weld seam dense and smooth. Compatible with all processes of hot air welding, extrusion welding, single-track welding. For internal and external corners, pipe membrane penetration, arc special-shaped nodes, patch repair and other dead corners that double-track welders cannot construct, compatibility is at full capacity, construction fault tolerance is high, beginners can also operate quickly.
4. Strong sealing and anti-seepage, zero leakage hidden danger
High filling density, seamless fitting of membrane material gaps, formed weld seam air tightness and water tightness up to standard, can pass air pressure testing, vacuum testing, electric spark flaw detection testing, completely blocking leachate, water body, groundwater penetration channels, meeting high-standard anti-seepage engineering acceptance requirements.
5. Environmentally friendly and non-toxic, engineering compliant
No heavy metals, no harmful volatile substances, environmentally friendly modified formula, meets the environmental protection standards for solid waste landfill, drinking water conservancy, aquaculture, will not pollute water bodies and soil, suitable for ecological and environmental protection engineering projects.
