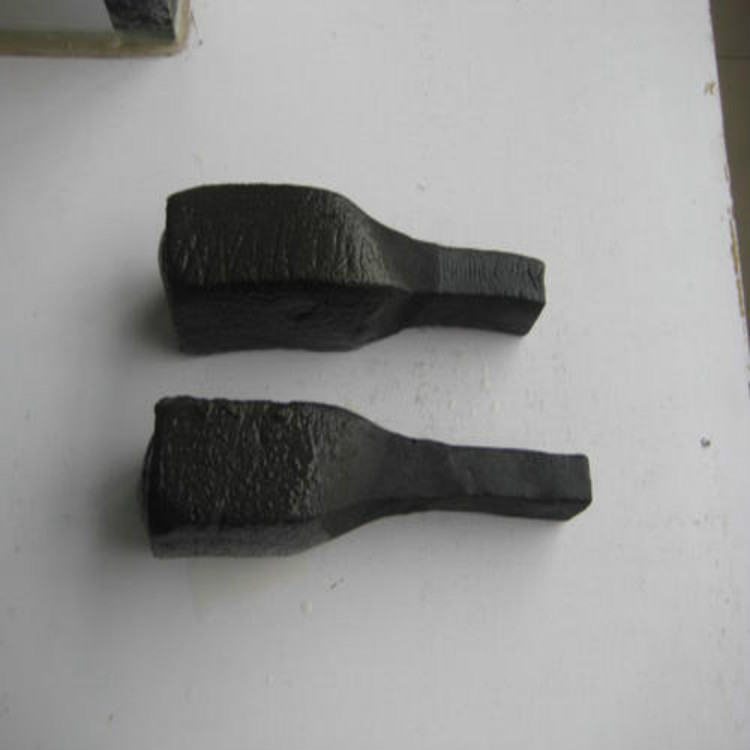

Water-swellable waterstop strip, the models marked above, 3×2cm, 4×4cm, 3×5 are national standard, 1.5×2.5mm is ordinary model.
The water swelling rate of national standard is about more than twice its own, while the ordinary model has slightly inferior effect.
If the above specifications do not meet your needs, you can select others and then explain in the remarks.
Waterstop strip is made by mixing polymer inorganic water-swellable material and rubber. It is a material for preventing leakage at construction joints of concrete engineering such as various underground building construction projects, water conservancy projects, traffic tunnel projects, power plant cooling towers, municipal water supply and drainage, etc.
The water swelling rate of national standard is about more than twice its own, while the ordinary model has slightly inferior effect.
If the above specifications do not meet your needs, you can select others and then explain in the remarks.
Waterstop strip is made by mixing polymer inorganic water-swellable material and rubber. It is a material for preventing leakage at construction joints of concrete engineering such as various underground building construction projects, water conservancy projects, traffic tunnel projects, power plant cooling towers, municipal water supply and drainage, etc.
Regarding the installation of water-swellable waterstop strip:

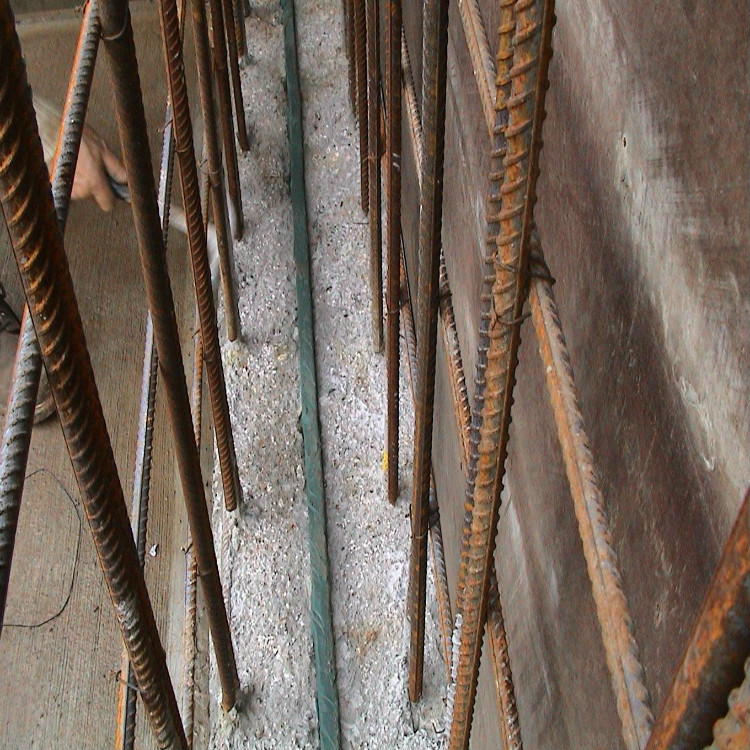

1. For installation with reserved adhesive method, a waterstop strip placement groove needs to be reserved in the first-poured concrete (can be reserved by nailing wooden strips in the formwork). After removing the first-poured concrete formwork, clean the surface so that the joint surface is free of water, clean, and free of debris.
2. Embed the waterstop strip into the reserved groove. If no groove is reserved, for vertical joints, adhesive can be added for full-length bonding, or cement nails plus wooden strips can be used to fix the waterstop strip; for horizontal joints, it can be directly bonded to the concrete surface. After the waterstop strip is bonded, concrete should be poured as soon as possible. During the installation and bonding process, the water-swellable waterstop strip should be prevented from being contaminated and from swelling due to water, so as not to affect the use effect.
3. This product is pre-placed at the interface of concrete construction joints and post-pouring joints. After secondary concrete pouring (i.e., in the state of being wrapped by concrete), it swells when encountering water and can completely block andprevent leakage water sources. High expansion ratio, strong mobility and supplementation. The waterstop strip placed at construction joints and post-pouring joints has strong balanced self-healing function, and can self-seal new tiny cracks caused by settlement.
4. For completed projects, if there is water leakage in the gaps, this waterstop strip can be used to re-block. The waterproof and anti-seepage effect is superior to traditional steel plate, rubber and plastic waterstops, and the construction method is simple and easy, saving labor and time. The main material is inorganic mineral raw material, with characteristics such as aging resistance, corrosion resistance, and no pollution.
1. For installation with reserved adhesive method, a waterstop strip placement groove needs to be reserved in the first-poured concrete (can be reserved by nailing wooden strips in the formwork). After removing the first-poured concrete formwork, clean the surface so that the joint surface is free of water, clean, and free of debris.
2. Embed the waterstop strip into the reserved groove. If no groove is reserved, for vertical joints, adhesive can be added for full-length bonding, or cement nails plus wooden strips can be used to fix the waterstop strip; for horizontal joints, it can be directly bonded to the concrete surface. After the waterstop strip is bonded, concrete should be poured as soon as possible. During the installation and bonding process, the water-swellable waterstop strip should be prevented from being contaminated and from swelling due to water, so as not to affect the use effect.
3. This product is pre-placed at the interface of concrete construction joints and post-pouring joints. After secondary concrete pouring (i.e., in the state of being wrapped by concrete), it swells when encountering water and can completely block andprevent leakage water sources. High expansion ratio, strong mobility and supplementation. The waterstop strip placed at construction joints and post-pouring joints has strong balanced self-healing function, and can self-seal new tiny cracks caused by settlement.
4. For completed projects, if there is water leakage in the gaps, this waterstop strip can be used to re-block. The waterproof and anti-seepage effect is superior to traditional steel plate, rubber and plastic waterstops, and the construction method is simple and easy, saving labor and time. The main material is inorganic mineral raw material, with characteristics such as aging resistance, corrosion resistance, and no pollution.
